My "Avanti" P180 3D model, in Carrara Studio
The 2009 follow-along article has been deleted from my site, but is included in "Modeling with MODO, Volume One".
Click here to see the newer 2014 model, which has much more detail, and is all Catmull-Clark subdivision surfaces. ("Psubs", in MODO)
The image below is my final 2007 render of the Avanti model I made in Carrara Studio.
Not much documentation when I started...

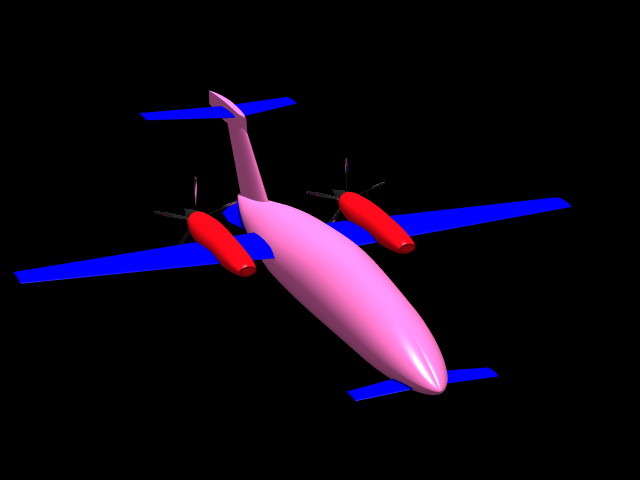

I started building my 3D model in 1995, before I had all the documentation from Piaggio. So, this simple representative render shows how I began. It's not scale, but composed entirely out of "stand-in" parts, while waiting on the information I needed to make it precise.
The MP4 movie at the bottom of this page shows the complete process of creating this now-ancient Carrara model, in a 5-minute compilation of renders.
The 2009 follow-along article has been deleted from my site, but is included in "Modeling with MODO, Volume One".
Click here to see the newer 2014 model, which has much more detail, and is all Catmull-Clark subdivision surfaces. ("Psubs", in MODO)
